Description

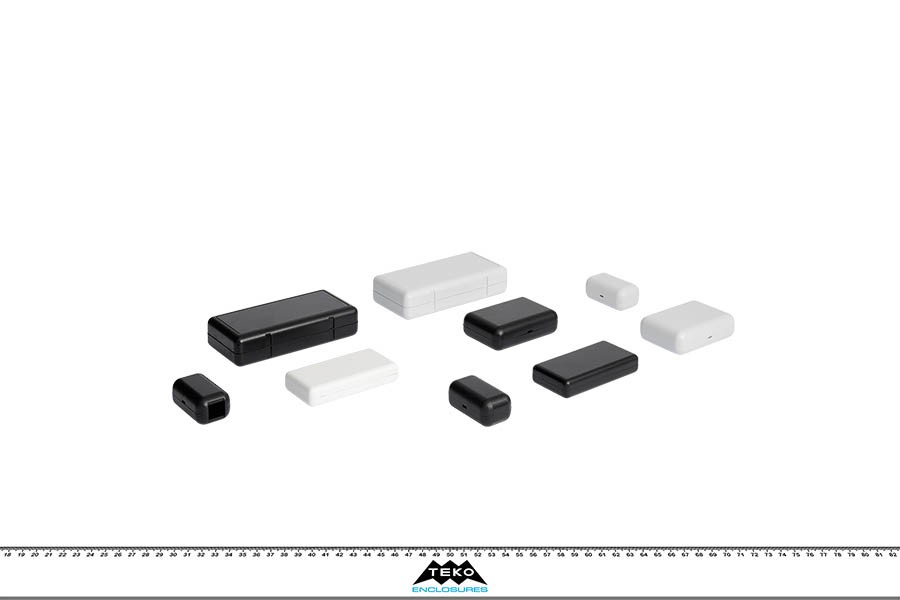

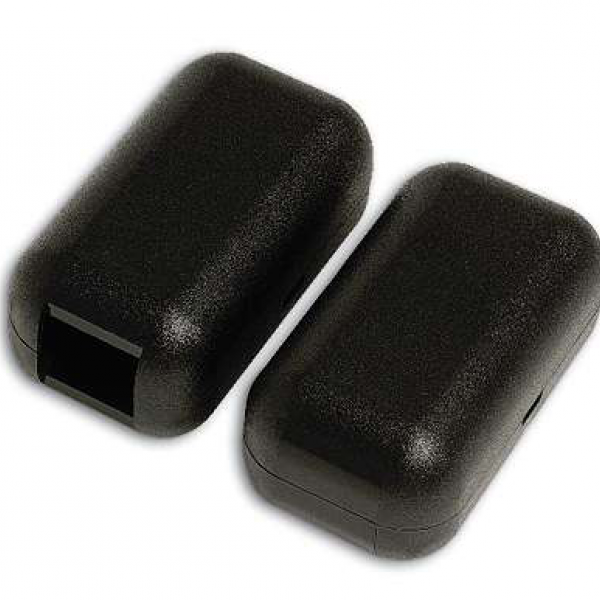

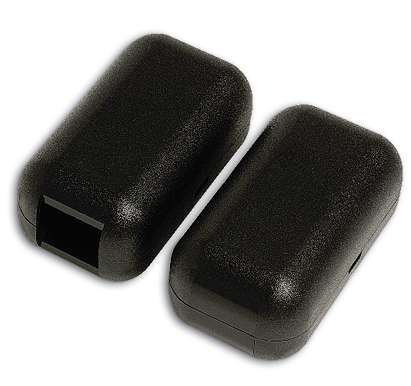

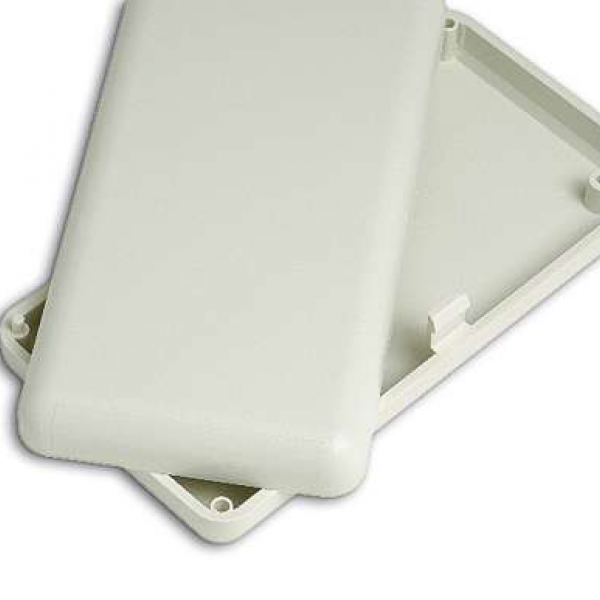

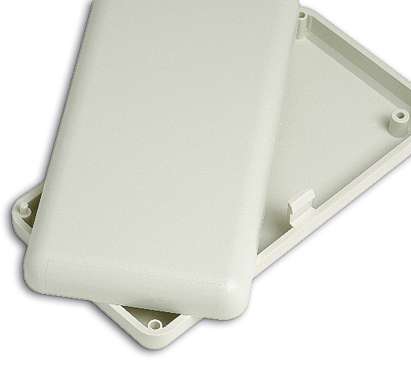

ABS enclosures with rounded corners, convenient to carry and snaps together for easy assembly. Base and cover have integral PCB mounting studs. The enclosures “10006/1” and “10006/2” are available with one or two cutouts for connectors or cables (14,7 x 12,5 mm). Matt surface finish. Only the model “10014” is available in black or white.
Products

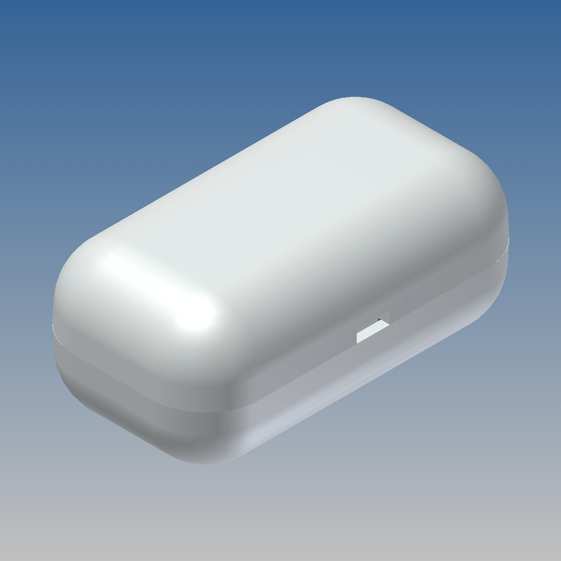

Model | 10006.5 |
L (mm) | 56 |
W (mm) | 31 |
H (mm) | 24 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 37 |
MAX PCB W (mm) | 25 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | 10006.9 |
L (mm) | 56 |
W (mm) | 31 |
H (mm) | 24 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 37 |
MAX PCB W (mm) | 25 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

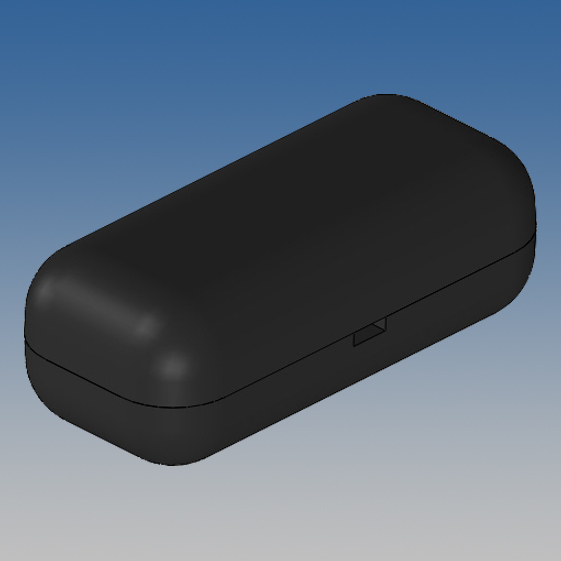

Model |
10006-L.9 NEW |
L (mm) | 68 |
W (mm) | 31 |
H (mm) | 24 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 61 |
MAX PCB W (mm) | 24,5 |
Screws | |
Battery | |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | 10006/1.5 |
L (mm) | 56 |
W (mm) | 31 |
H (mm) | 24 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 37 |
MAX PCB W (mm) | 25 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

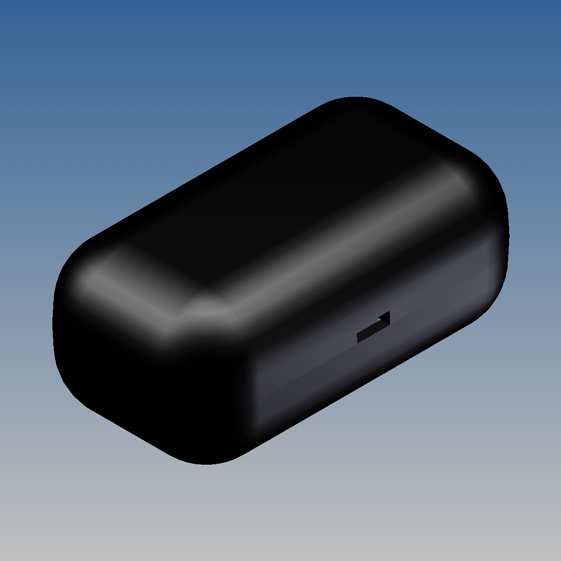

Model | 10006/1.9 |
L (mm) | 56 |
W (mm) | 31 |
H (mm) | 24 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 37 |
MAX PCB W (mm) | 25 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

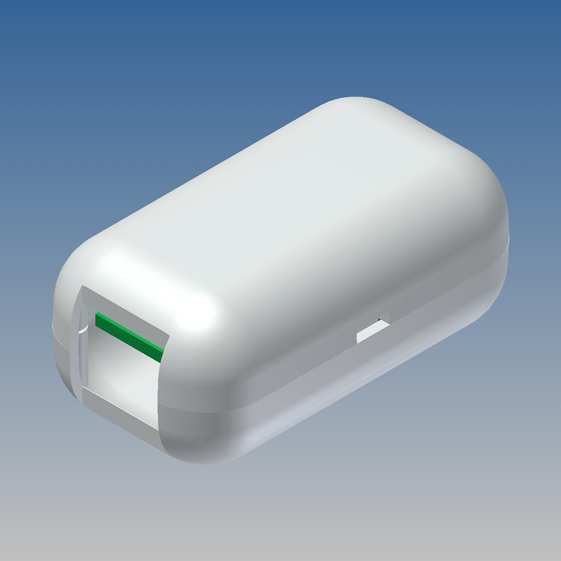

Model | 10006/2.5 |
L (mm) | 56 |
W (mm) | 31 |
H (mm) | 24 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 37 |
MAX PCB W (mm) | 25 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

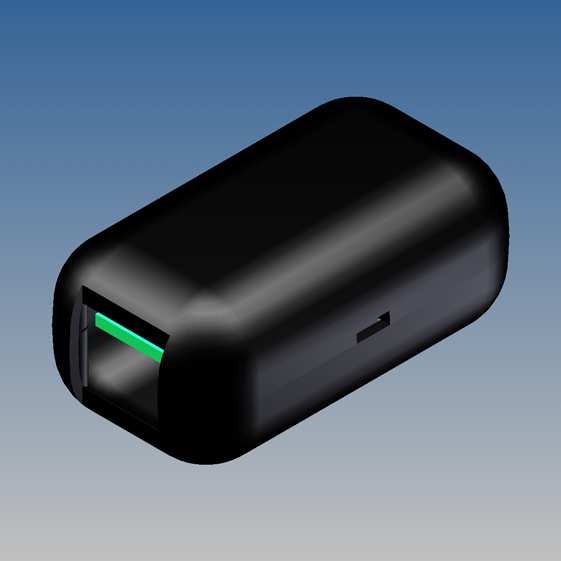

Model | 10006/2.9 |
L (mm) | 56 |
W (mm) | 31 |
H (mm) | 24 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 37 |
MAX PCB W (mm) | 25 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

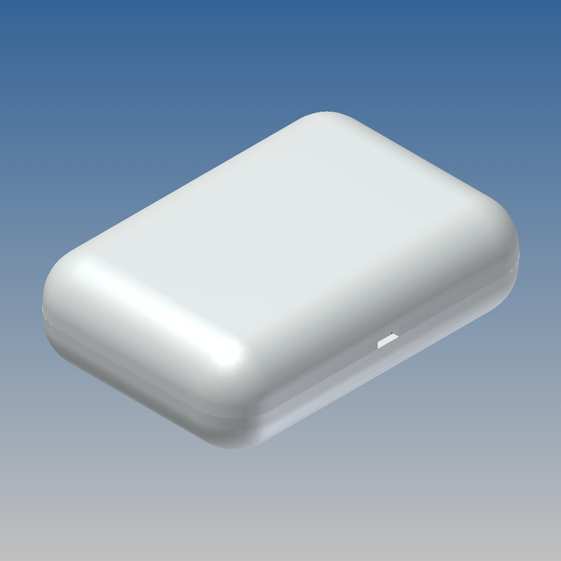

Model | 10007.5 |
L (mm) | 80 |
W (mm) | 56 |
H (mm) | 24,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 65 |
MAX PCB W (mm) | 49,5 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

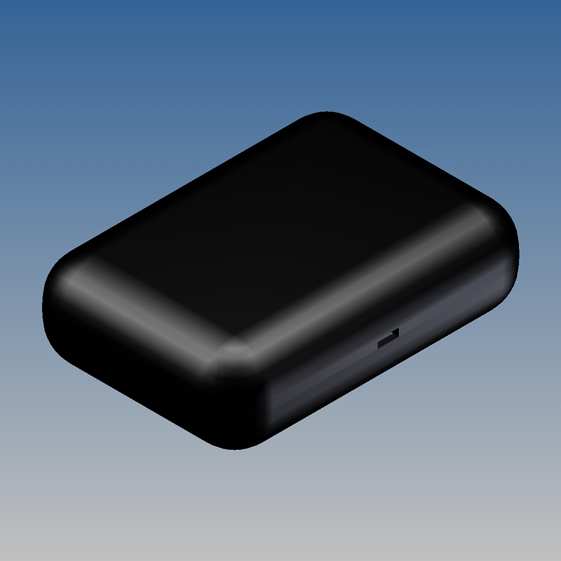

Model | 10007.9 |
L (mm) | 80 |
W (mm) | 56 |
H (mm) | 24,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 65 |
MAX PCB W (mm) | 49,5 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

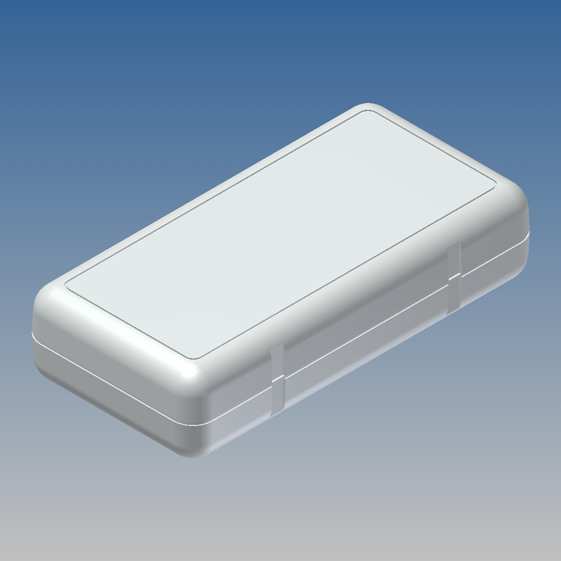

Model | 10008.5 |
L (mm) | 131 |
W (mm) | 65 |
H (mm) | 30,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 117 |
MAX PCB W (mm) | 58 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

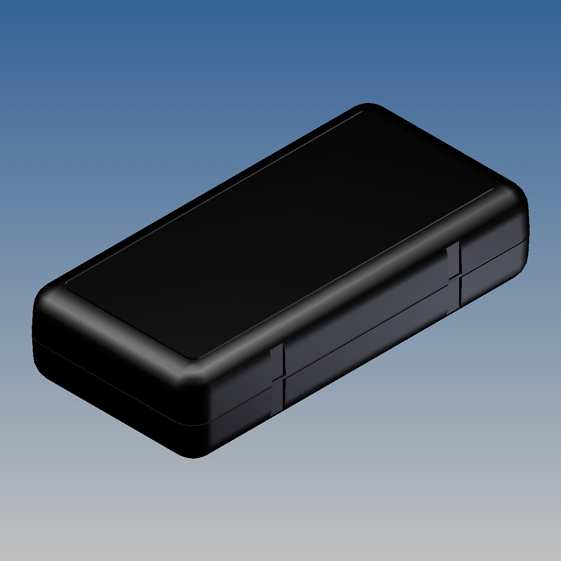

Model | 10008.9 |
L (mm) | 131 |
W (mm) | 65 |
H (mm) | 30,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 117 |
MAX PCB W (mm) | 58 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

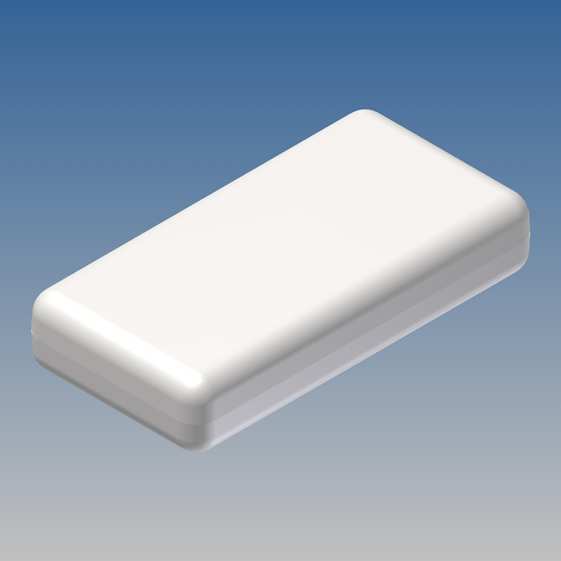

Model | 10014.7 |
L (mm) | 90 |
W (mm) | 46 |
H (mm) | 17,5 |
Color (Ral) |
9002 |
Material | L320 |
MAX PCB L (mm) | 83 |
MAX PCB W (mm) | 39 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

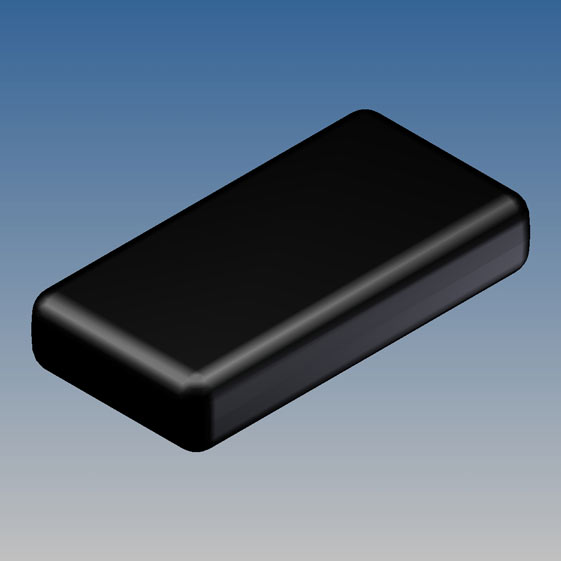

Model | 10014.9 |
L (mm) | 90 |
W (mm) | 46 |
H (mm) | 17,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 83 |
MAX PCB W (mm) | 39 |
Screws | - |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10006.5 | 56 | 31 | 24 |
9018 |
AG-ATY | 37 | 25 | - | - |
PDF DWG |
View
|
||
10006.9 | 56 | 31 | 24 |
9004 |
P2H-AT | 37 | 25 | - | - |
PDF DWG |
View
|
||
10006-L.9 NEW |
68 | 31 | 24 |
9004 |
P2H-AT | 61 | 24,5 |
PDF DWG |
View
|
||||
10006/1.5 | 56 | 31 | 24 |
9018 |
AG-ATY | 37 | 25 | - | - |
PDF DWG |
View
|
||
10006/1.9 | 56 | 31 | 24 |
9004 |
P2H-AT | 37 | 25 | - | - |
PDF DWG |
View
|
||
10006/2.5 | 56 | 31 | 24 |
9018 |
AG-ATY | 37 | 25 | - | - |
PDF DWG |
View
|
||
10006/2.9 | 56 | 31 | 24 |
9004 |
P2H-AT | 37 | 25 | - | - |
PDF DWG |
View
|
||
10007.5 | 80 | 56 | 24,5 |
9018 |
AG-ATY | 65 | 49,5 | - | - |
PDF DWG |
View
|
||
10007.9 | 80 | 56 | 24,5 |
9004 |
P2H-AT | 65 | 49,5 | - | - |
PDF DWG |
View
|
||
10008.5 | 131 | 65 | 30,5 |
9018 |
AG-ATY | 117 | 58 | - | - |
PDF DWG |
View
|
||
10008.9 | 131 | 65 | 30,5 |
9004 |
P2H-AT | 117 | 58 | - | - |
PDF DWG |
View
|
||
10014.7 | 90 | 46 | 17,5 |
9002 |
L320 | 83 | 39 | - | - |
PDF DWG |
View
|
||
10014.9 | 90 | 46 | 17,5 |
9004 |
P2H-AT | 83 | 39 | - | - |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
