TEKWALL

Family Handheld - Electronic enclosures - Plastic

Description

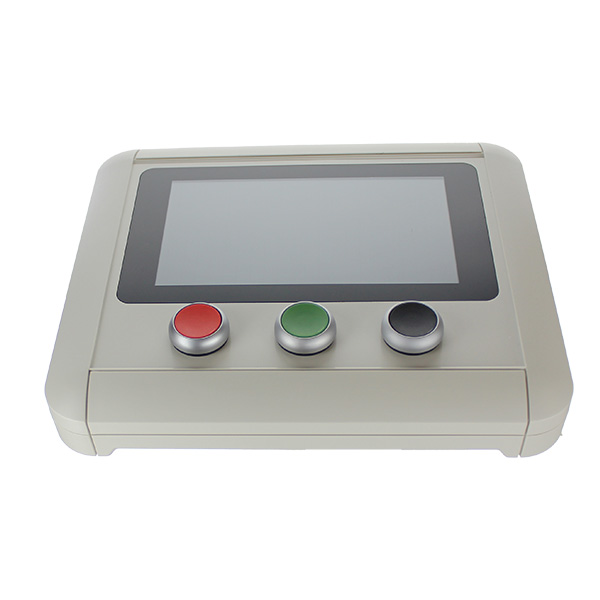

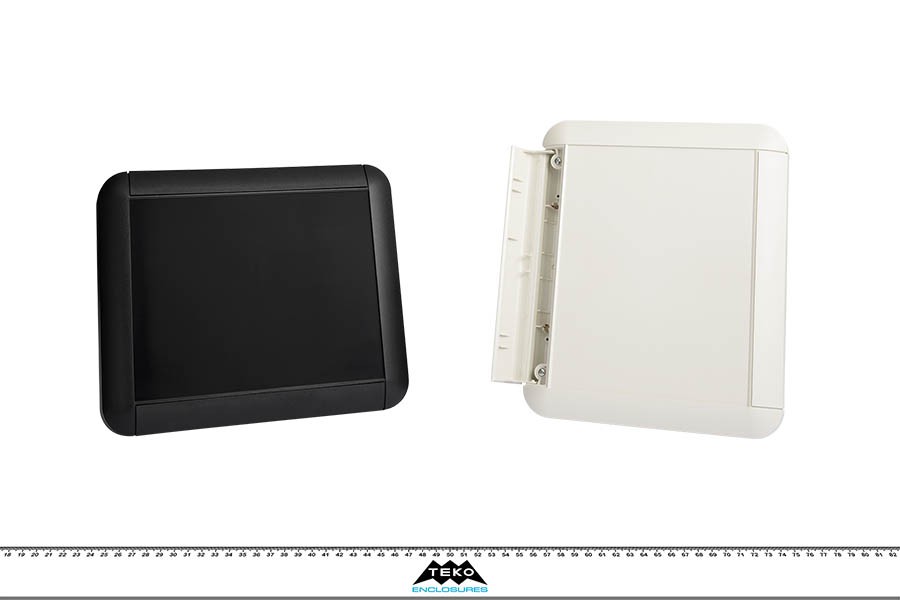

Multifunction flat enclosure, modern designed, ideal for desktop, hand-held and wall mounting applications. Wide recessed area on the top part suitable for touch-screen displays up to 10” (204,5x158,5mm). This model is equipped with IP65 sealing kits for screws and case. Internal battery compartments on both sides to accept 2+2 1,5V mignon cells (AA). Internal bosses on top and bottom for an easy fixing of the PCB. Closing by four M3 screws.

Details

Products

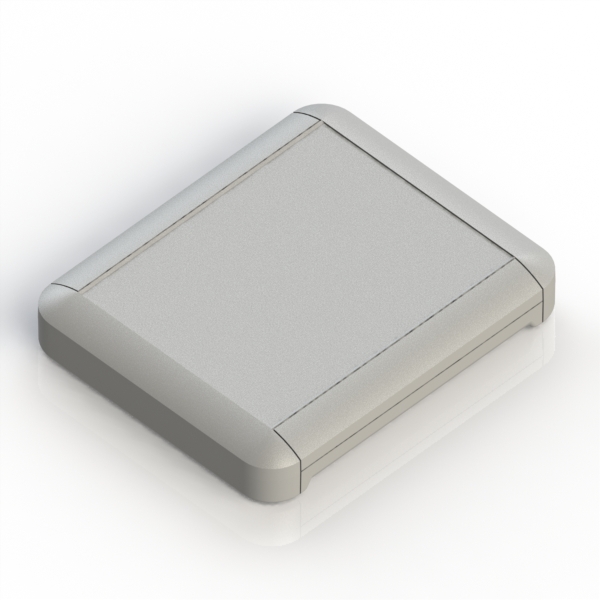

Model TW31.7
NEW
L (mm)252,5
W (mm)210
H (mm)40
Color (Ral) 9002
Material L320
MAX PCB L (mm)246
MAX PCB W (mm)163,6
Screws4
Battery4 x AA
Accessories
Drawings PDF
DWG
Other
View

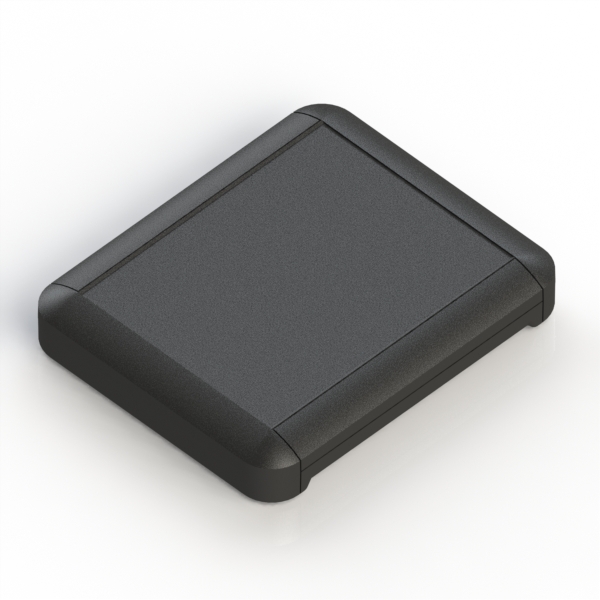

Model TW31.9
NEW
L (mm)252,5
W (mm)210
H (mm)40
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)246
MAX PCB W (mm)163,6
Screws4
Battery4 x AA
Accessories
Drawings PDF
DWG
Other
View

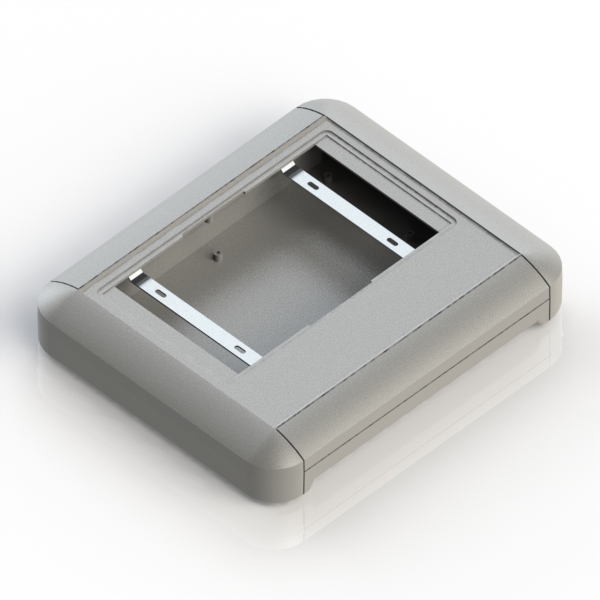

Model TW31_RPI.7
NEW
L (mm)252,5
W (mm)210
H (mm)40
Color (Ral) 9002
Material L320
MAX PCB L (mm)246
MAX PCB W (mm)163,6
Screws4
Battery4xAA
Accessories
Drawings PDF
DWG
Other
View

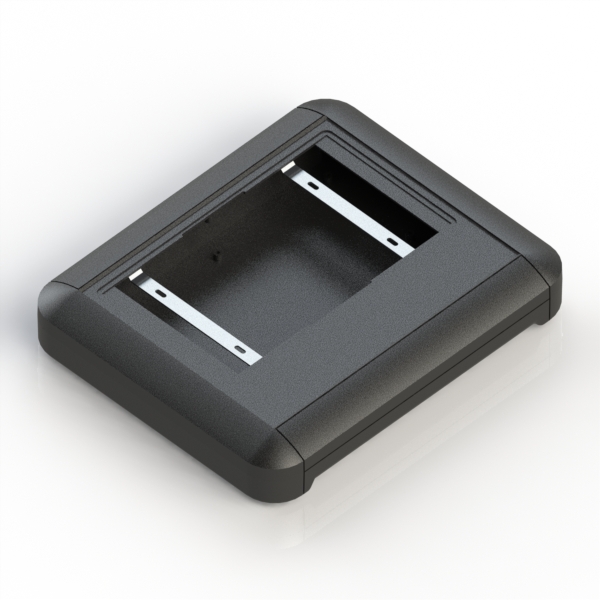

Model TW31_RPI.9
NEW
L (mm)252,5
W (mm)210
H (mm)40
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)246
MAX PCB W (mm)163,6
Screws4
Battery4xAA
Accessories
Drawings PDF
DWG
Other
View

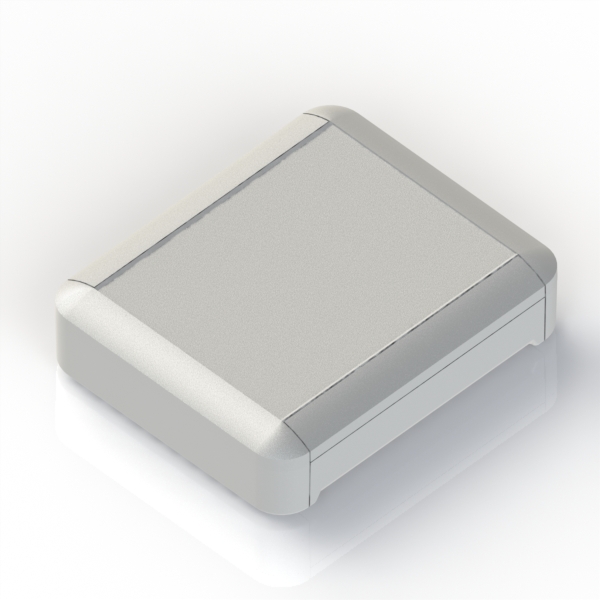

Model TW32.7
NEW
L (mm)252.5
W (mm)210
H (mm)60
Color (Ral) 9002
Material L320
MAX PCB L (mm)246
MAX PCB W (mm)163,6
Screws4
Battery
Accessories
Drawings PDF
DWG
Other
View

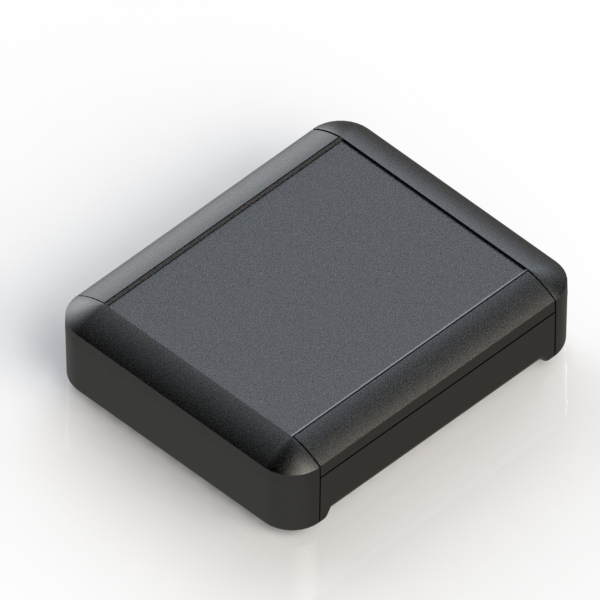

Model TW32.9
NEW
L (mm)252.5
W (mm)210
H (mm)60
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)246
MAX PCB W (mm)163,6
Screws4
Battery
Accessories
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
TW31.7
NEW
252,5 210 40 9002
L320 246 163,6 4 4 x AA PDF
DWG
View
TW31.9
NEW
252,5 210 40 9004
P2H-AT 246 163,6 4 4 x AA PDF
DWG
View
TW31_RPI.7
NEW
252,5 210 40 9002
L320 246 163,6 4 4xAA PDF
DWG
View
TW31_RPI.9
NEW
252,5 210 40 9004
P2H-AT 246 163,6 4 4xAA PDF
DWG
View
TW32.7
NEW
252.5 210 60 9002
L320 246 163,6 4   PDF
DWG
View
TW32.9
NEW
252.5 210 60 9004
P2H-AT 246 163,6 4   PDF
DWG
View
