Description

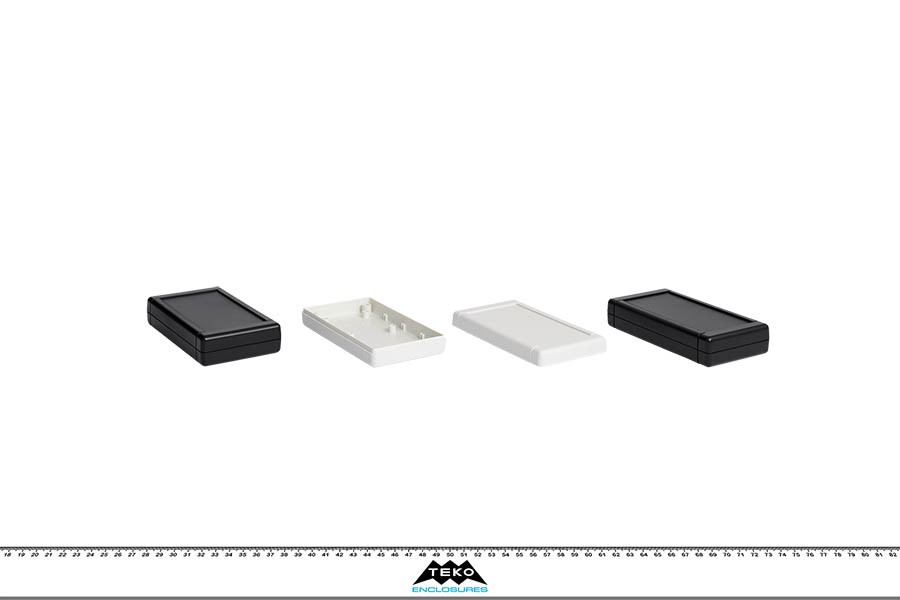

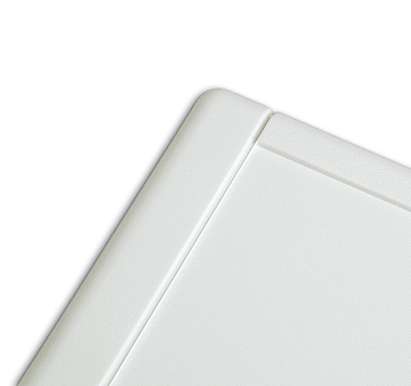

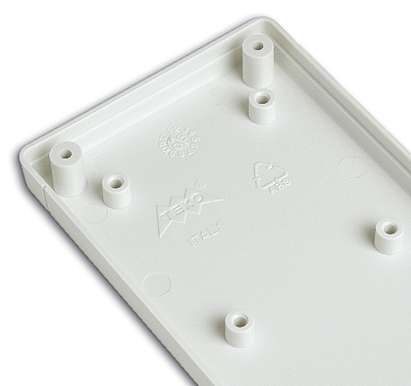

ABS enclosures with a recessed operating area 102 x 52 mm. for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.
Details
Products
| |
|---|---|

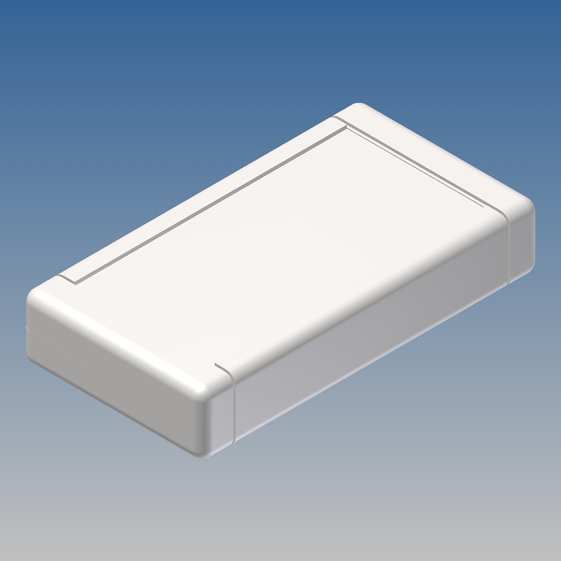

| Model | TB.7 |
| L (mm) | 126 |
| W (mm) | 67,8 |
| H (mm) | 24,5 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 98 |
| MAX PCB W (mm) | 57 |
| Screws | 4 |
| Battery | - |
| Accessories |
M54 MT1 MW55 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

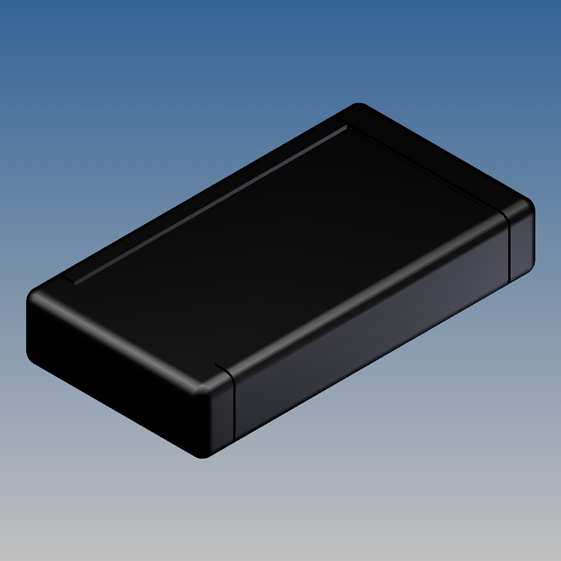

| Model | TB.9 |
| L (mm) | 126 |
| W (mm) | 67,8 |
| H (mm) | 24,5 |
| Color (Ral) |
9004 |
| Material | TERLURAN GP-35 |
| MAX PCB L (mm) | 98 |
| MAX PCB W (mm) | 57 |
| Screws | 4 |
| Battery | - |
| Accessories |
M54 MT1 MW55 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TB.7 | 126 | 67,8 | 24,5 |
9002 |
FORMACROM 9249FC | 98 | 57 | 4 | - |
M54 MT1 MW55 |
PDF DWG |
View
|
|
|
TB.9 | 126 | 67,8 | 24,5 |
9004 |
TERLURAN GP-35 | 98 | 57 | 4 | - |
M54 MT1 MW55 |
PDF DWG |
View
|
