Description

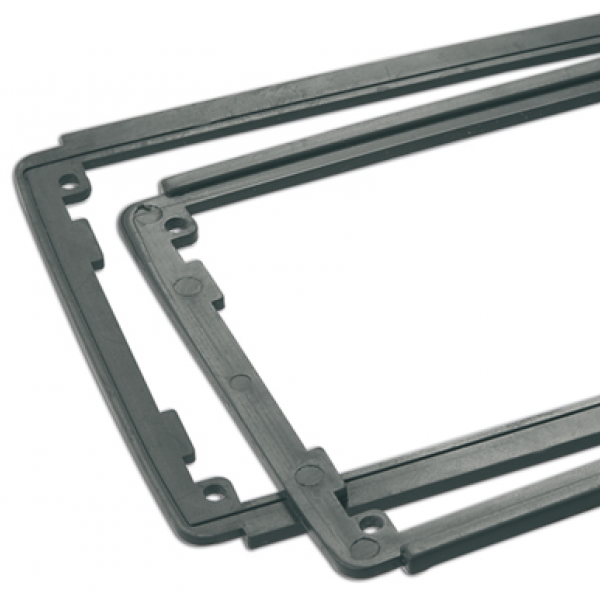

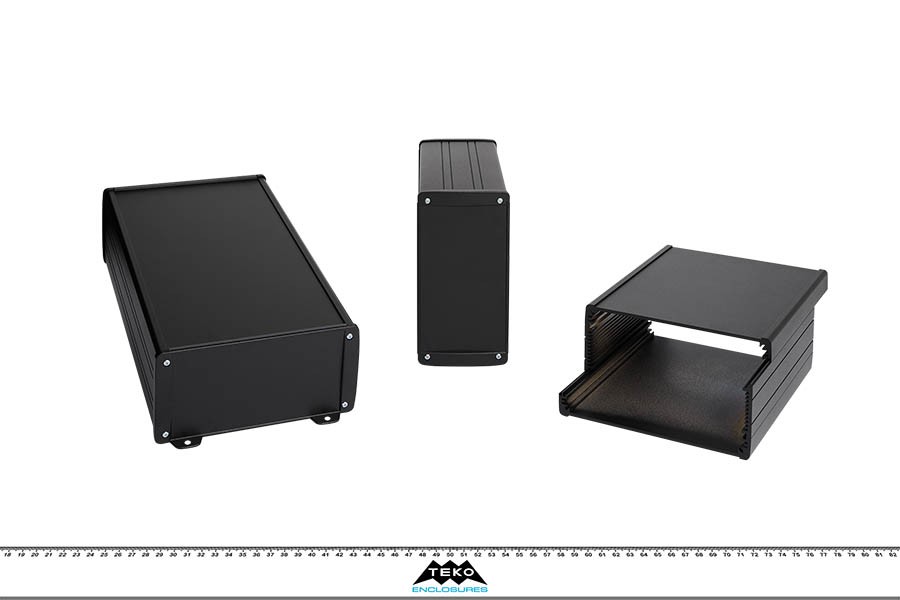

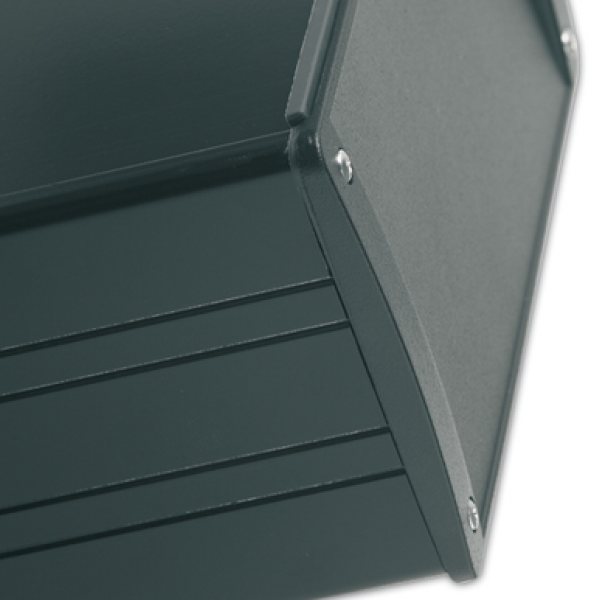

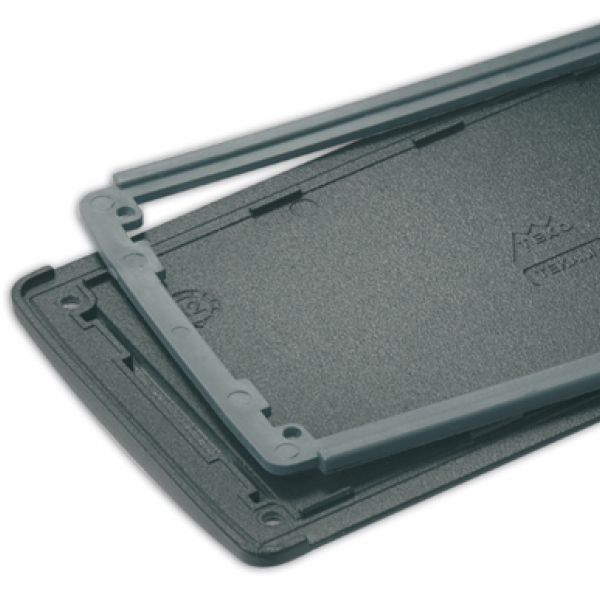

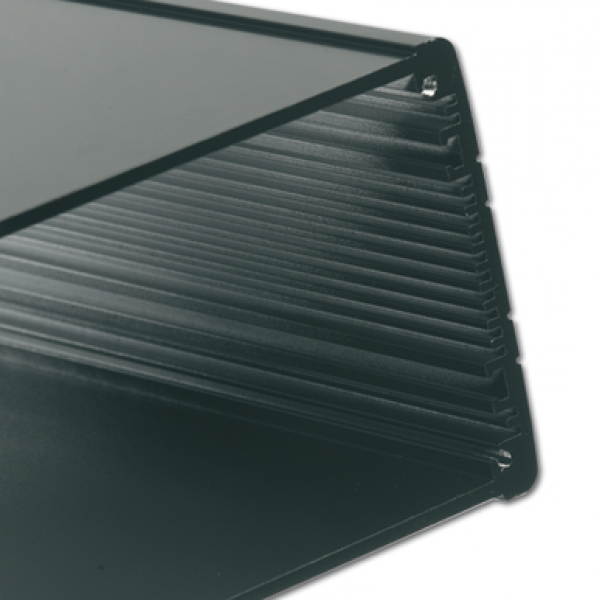

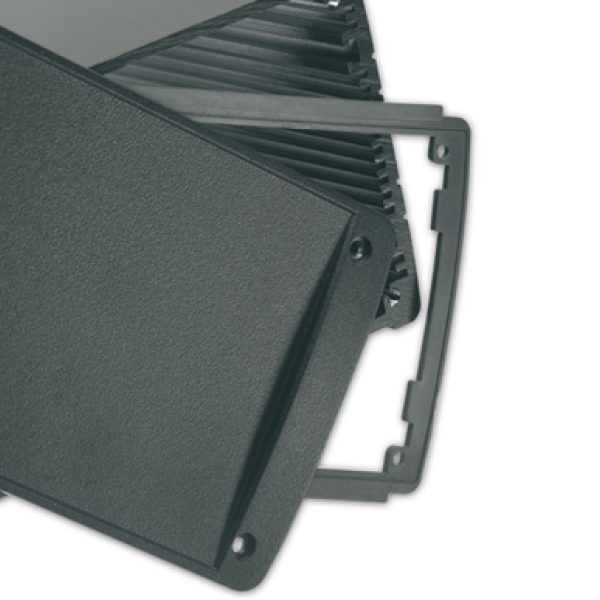

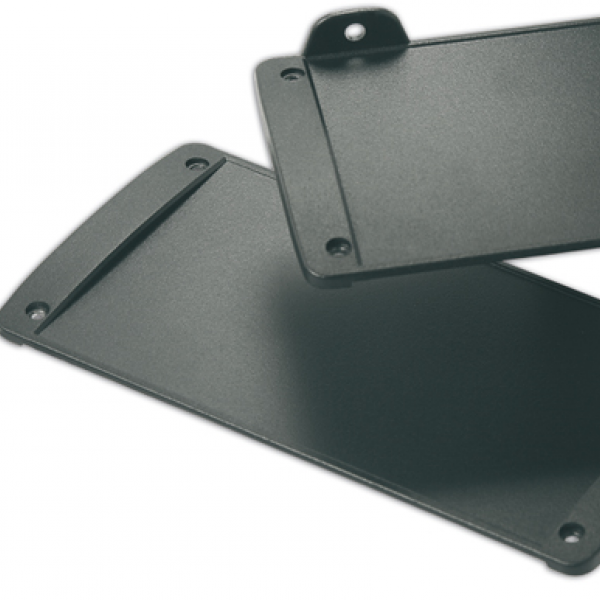

Extruded aluminium enclosures with high quality black powder coating. Internal slots for easy setup of boards. All models are equipped with IP65 sealing kits. The versions with “E” have front panels equipped with built-in flanges for wall mounting. Closing by eight screws.
Details
Products
| |
|---|---|

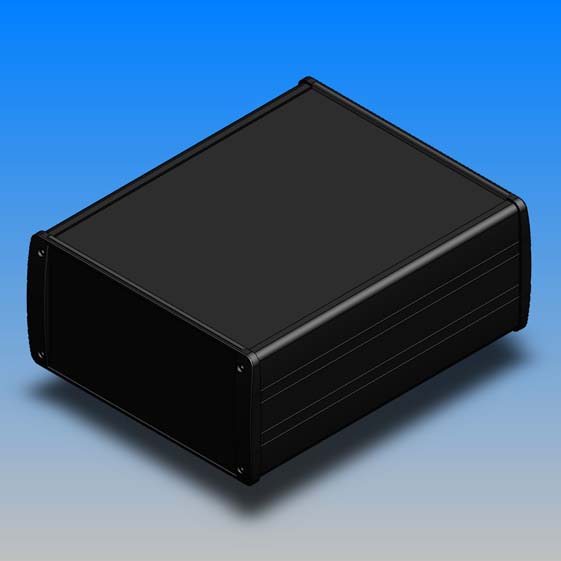

| Model | TEKAM-52.9 |
| L (mm) | 200 |
| W (mm) | 167 |
| H (mm) | 82 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - ZA4C1 |
| MAX PCB L (mm) | 200 |
| MAX PCB W (mm) | 160 |
| Screws | 8 |
| Battery | |
| Accessories |
TKAMSK5 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TEKAM-52/E.9 |
| L (mm) | 200 |
| W (mm) | 167 |
| H (mm) | 82 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - ZA4C1 |
| MAX PCB L (mm) | 200 |
| MAX PCB W (mm) | 160 |
| Screws | 8 |
| Battery | |
| Accessories |
TKAMSK5 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TEKAM-52L.9 |
| L (mm) | 200 |
| W (mm) | 167 |
| H (mm) | 82 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - ZA4C1 |
| MAX PCB L (mm) | 200 |
| MAX PCB W (mm) | 160 |
| Screws | 8 |
| Battery | |
| Accessories |
TKAMSK5 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

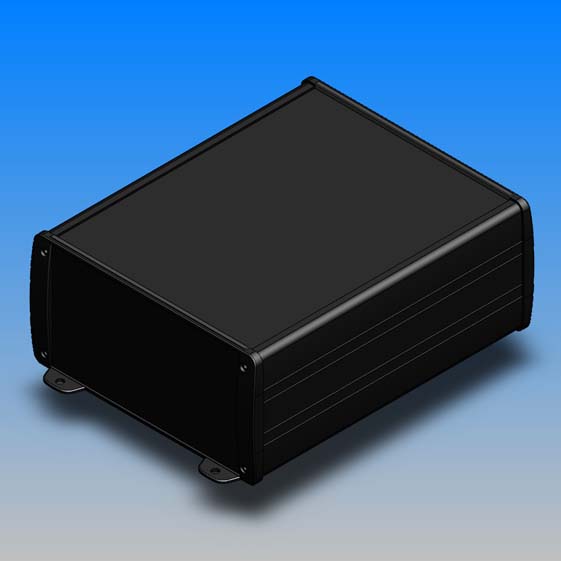

| Model | TEKAM-52L/E.9 |
| L (mm) | 200 |
| W (mm) | 167 |
| H (mm) | 82 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - ZA4C1 |
| MAX PCB L (mm) | 200 |
| MAX PCB W (mm) | 160 |
| Screws | 8 |
| Battery | |
| Accessories |
TKAMSK5 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

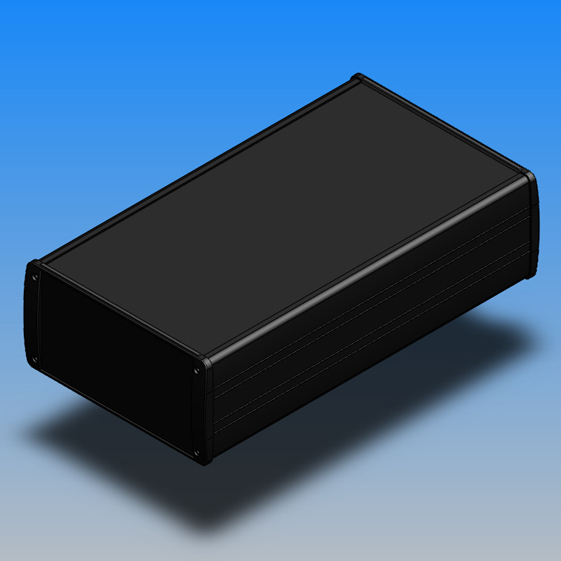

| Model | TEKAM-54.9 |
| L (mm) | 300 |
| W (mm) | 167 |
| H (mm) | 82 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - ZA4C1 |
| MAX PCB L (mm) | 300 |
| MAX PCB W (mm) | 160 |
| Screws | 8 |
| Battery | |
| Accessories |
TKAMSK5 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

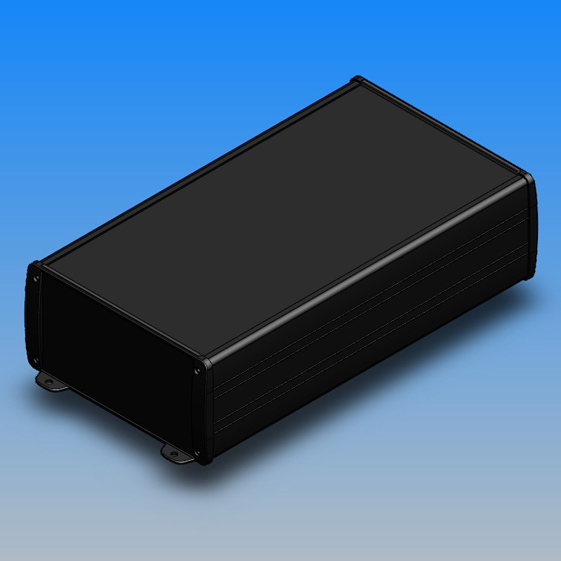

| Model | TEKAM-54/E.9 |
| L (mm) | 300 |
| W (mm) | 167 |
| H (mm) | 82 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - ZA4C1 |
| MAX PCB L (mm) | 300 |
| MAX PCB W (mm) | 160 |
| Screws | 8 |
| Battery | |
| Accessories |
TKAMSK5 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TEKAM-54L.9 |
| L (mm) | 300 |
| W (mm) | 167 |
| H (mm) | 82 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - ZA4C1 |
| MAX PCB L (mm) | 300 |
| MAX PCB W (mm) | 160 |
| Screws | 8 |
| Battery | |
| Accessories |
TKAMSK5 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TEKAM-54L/E.9 |
| L (mm) | 300 |
| W (mm) | 167 |
| H (mm) | 82 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 - ZA4C1 |
| MAX PCB L (mm) | 300 |
| MAX PCB W (mm) | 160 |
| Screws | 8 |
| Battery | |
| Accessories |
TKAMSK5 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TEKAM-52.9 | 200 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 200 | 160 | 8 |
TKAMSK5 |
PDF DWG |
View
|
|
|
|
TEKAM-52/E.9 | 200 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 200 | 160 | 8 |
TKAMSK5 |
PDF DWG |
View
|
|
|
|
TEKAM-52L.9 | 200 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 200 | 160 | 8 |
TKAMSK5 |
PDF DWG |
View
|
|
|
|
TEKAM-52L/E.9 | 200 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 200 | 160 | 8 |
TKAMSK5 |
PDF DWG |
View
|
|
|
|
TEKAM-54.9 | 300 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 300 | 160 | 8 |
TKAMSK5 |
PDF DWG |
View
|
|
|
|
TEKAM-54/E.9 | 300 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 300 | 160 | 8 |
TKAMSK5 |
PDF DWG |
View
|
|
|
|
TEKAM-54L.9 | 300 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 300 | 160 | 8 |
TKAMSK5 |
PDF DWG |
View
|
|
|
|
TEKAM-54L/E.9 | 300 | 167 | 82 |
9004 |
ALLOY 6060 - ZA4C1 | 300 | 160 | 8 |
TKAMSK5 |
PDF DWG |
View
|
